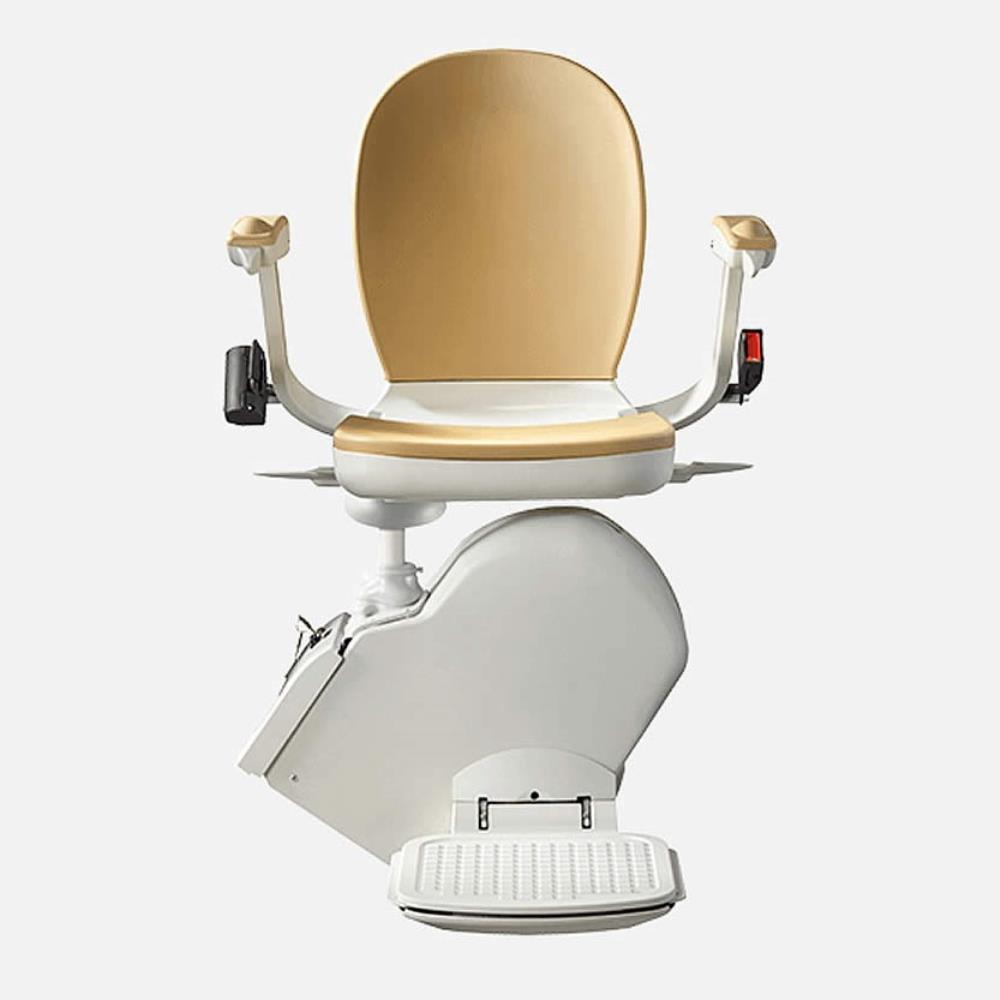

Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide.

Stairlift Hinged Rail Option!

All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs.

Acorn Stairlifts have all the features you need, and none you don't!

Straight Stairlift Features

Fits quickly and easily to the stairs, not the wall
Requires no structural changes to your home
Affordable and reliable with low running costs
Slimline and folds away conveniently when not in use
Optional hinged rail designed to eliminate any obstruction or trip hazard

Straight Stairlift Installation

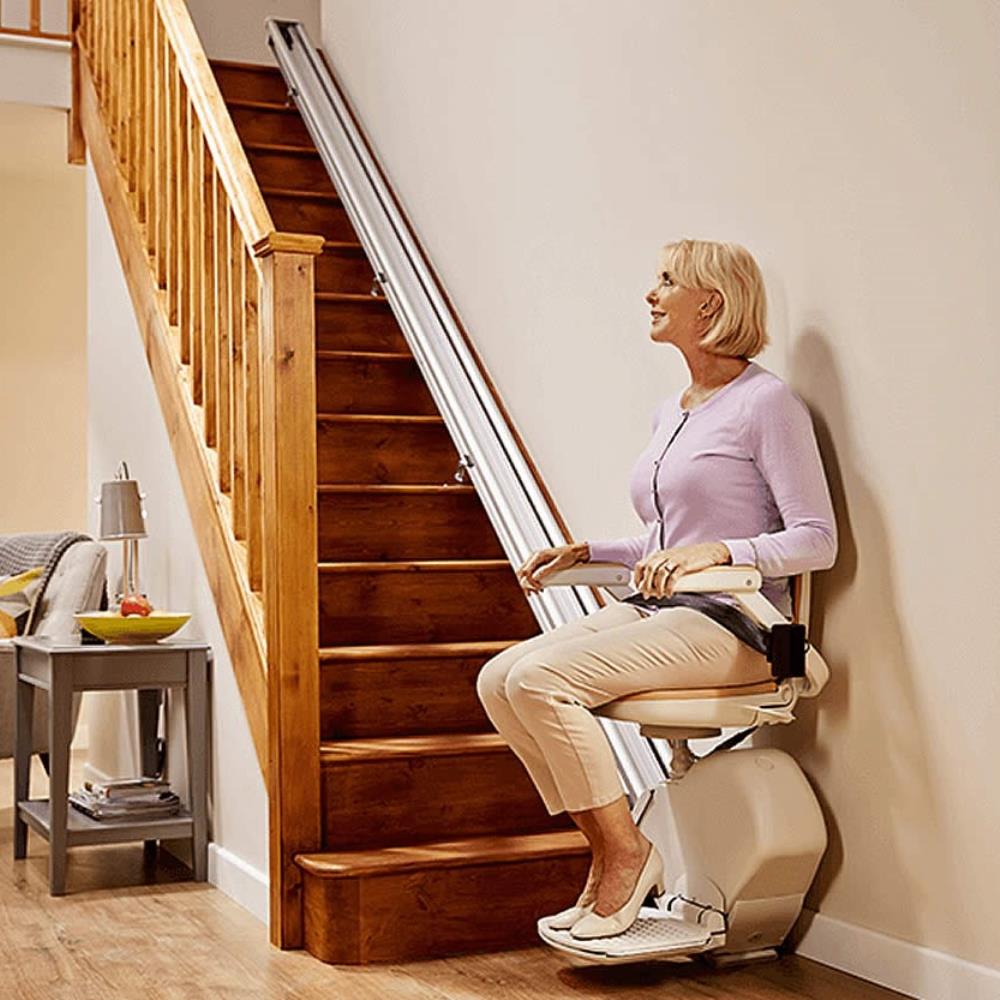

All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.

FREE Straight Stairlift Quote

Our comprehensive home survey is completely free and you're under no obligation to buy!

Specifications

Angles
Standard Indoor 130 ( Short seat post: 40-55°, Standard seat post: 29-55°, Tall seat post: 23-55° ) Power Swivel 130 ( Standard seat post: 36-55°, Tall seat post: 23-55° )
Maximum Rail Length
394 inches
Floor to Top of Footrest
95 mm, 3.75 inches
Top of Footrest to Top of Seat
445 mm (Short: 410 mm) (Tall: 505 mm), 17.5 inches (Short: 16.25 inches) (Tall: 19.75 inches)
Top of Seat to Top of Arms
250 mm, 9.75 inches
Top of Arms to Top of Seat Back
190 mm, 17.5 inches
Width Between Armrests
445 mm (Wide arm version: 495 mm), 17.5 inches (Wide arm version: 19.5 inches)
Total Width
605 mm, 23.75 inches
Total Height to Floor
980 mm, 38.5 inches
Length of Arms From Seat Back
470 mm, 18.5 inches
Length of Seat Base From Seat Back
435 mm, 17 inches
Length of Footrest
325 mm, 12.75 inches

Width of Footrest
310 mm, 12.25 inches
Front of Footrest to Stringer
570 mm, 22.5 inches
Back of Seat to Stringer
13 mm, 0.5 inches
Folded Width
310 mm, 12.25 inches
Minimum Width Required to Swivel at Top
670 mm, 26.25 inches
Distance From Front of Rail to Stringer
215 mm, (Wide arm version: 240 mm), 8.5 inches (Wide arm version: 9.5 inches)
Max Speed
No greater than 0.15 metres per second
Method of Drive
Rack and Pinion
Carriage Power
24v DC batteries
Motor Power
0.25KW
Max Load Capacity (Maximum User Weight)
127kg, HD version: 159kg
Power Supply Input Range
50-60Hz, 120-240V AC
