Cumbria Mobility - Acorn 130 Straight Stairlift - Cumbria, Lancashire, Dumfries and Galloway, Carlisle, Lancaster, Morecambe

Free Home
Assessments

With its low running costs, it even operates through a power cut.

The sleek, smooth and modern rail system is unique to this stairlift.

There is no waiting weeks to have an expensive rail made for your home.

Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.

Stairlift Hinged Rail Option!

Automatic powered hinges can be fitted when there is an opening or doorway at the foot of the stairs.

An automatic powered hinged rail solves this problem.

Acorn Stairlifts have all the features you need, and none you don't!

Curved Stairlift Features

FastTrack®, our unique NEXT DAY installation service.
Installing our curved stairlift requires no structural changes to your home
Affordable and reliable with low running costs
Slimline and folds away conveniently when not in use
Buy direct from the manufacturer and save

Curved Stairlift Installation

All Acorn stairlifts - including our curved stairlifts - fit directly to the staircase, not the wall, so installation is quick and mess-free.

FREE Curved Stairlift Quote

Our comprehensive home survey is completely free and you're under no obligation to buy!

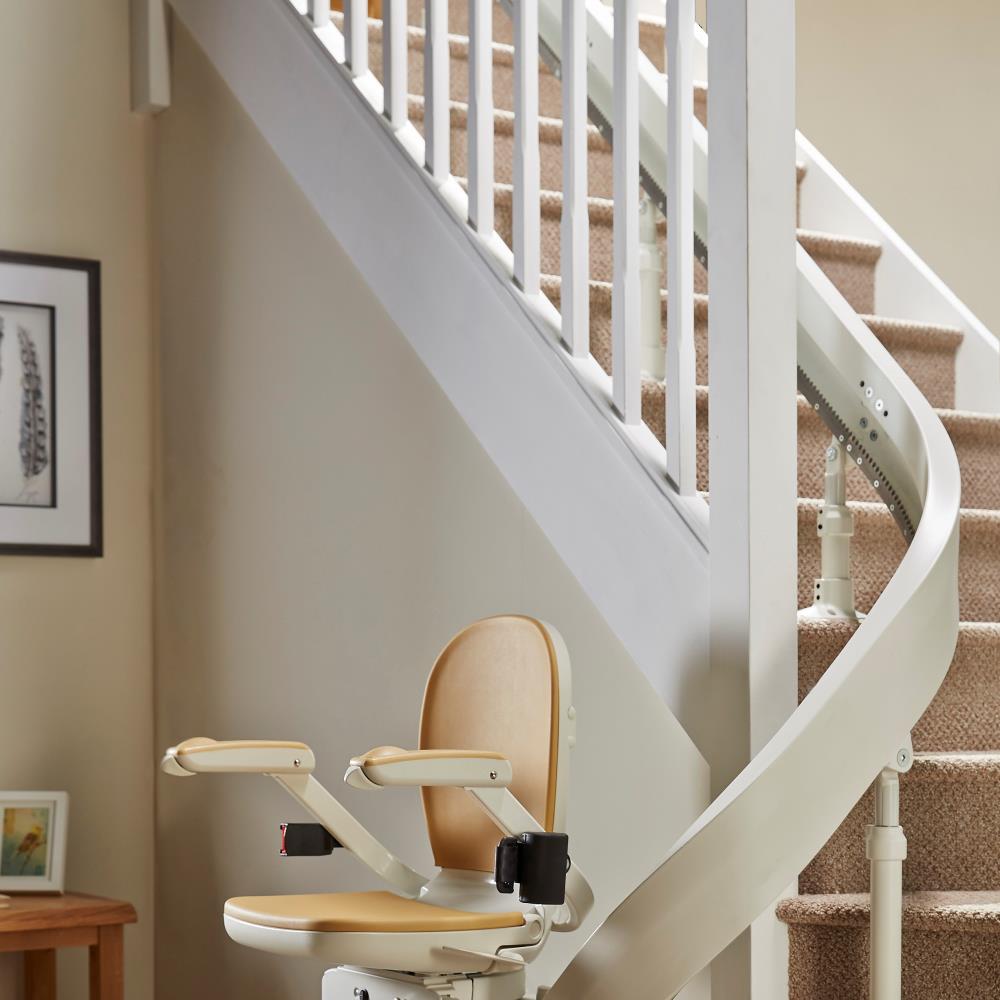

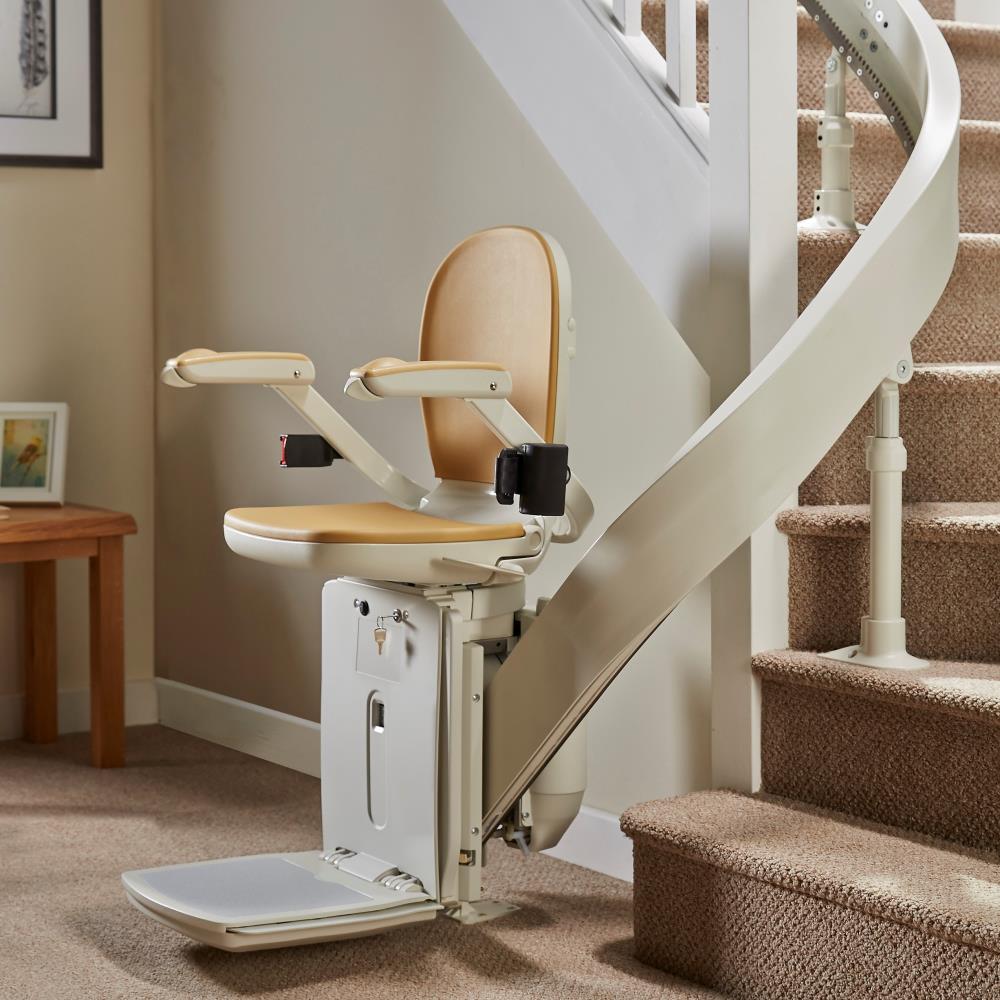

Acorn 180 Curved Stairlift - Lifestyle photo

Specifications

Angles
Min 0°, Max 58°
Maximum Rail Length
30 metres, 1181 incheses
Floor to Top of Footrest
50 mm, 2 inches
Top of Footrest to Top of Seat
485 mm, 19 inches
Top of Seat to Top of Arms
245 mm, 9.75 inches
Top of Arms to Top of Seat Back
195 mm, 7.75 inches
Width Between Armrests
480 mm, 19 inches
Total Width
620 mm, 24.5 inches
Total Height to Floor
975 mm, 38.25 inches
Length of Arms From Seat Back
460 mm, 18 inches
Length of Seat Base From Seat Back
435 mm, 17 inches
Length of Footrest
360 mm, 14.25 inches
Width of Footrest
375 mm, 14.75 inches

Front of Footrest to Stringer
640 mm, 25.25 inches
Back of Seat to Stringer
35 mm, 1.5 inches
Folded Width
335 mm, 13.25 inches
Minimum Width Required to Swivel at Top
690 mm, 27.25 inches
Distance From Front of Rail to Stringer
180 mm, 7 inches
Height of Leg
125 mm (min) 650 mm (max), 5 inches (min) 25.5 inches (max)
Front of Drop Nose to First Stair
450 mm, 17.75 inches
Max Speed
No greater than 0.15 meters per second
Method of Drive
Rack and Pinion
Carriage Power
29.6v D2C batteries
Motor Power
0.375KW
Max Load Capacity (Maximum User Weight)
120kg
Power Supply Input Range
100-240v AC

Request a Demonstration Today

To request a demonstration of the Acorn 130 Straight Stairlift at home or in our showroom, please enter your details and we'll contact you to arrange a suitable time.
