Acorn Outdoor Stairlifts

Open up and enjoy your outdoor space with Acorn Stairlifts.

Do you have a steep drive that is difficult to walk up?

Acorn Stairlifts do not need to be limited to your indoor stairs; our outdoor stairlifts are the perfect mobility aid to give you access to those outdoor spaces you love or have limited access to.

Request a:

  • Acorn

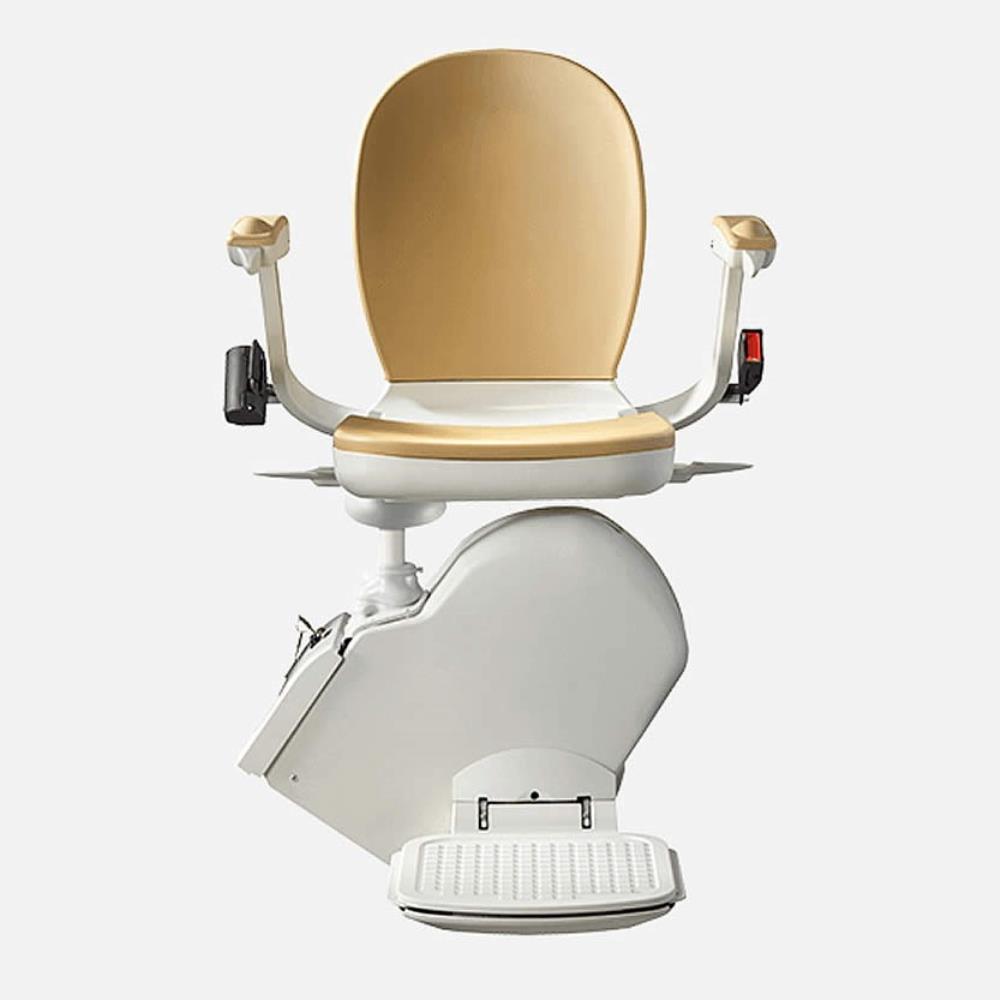

Our 130 outdoor stairlift comes with all the features that can be found on the Acorn 130 straight stairlift.

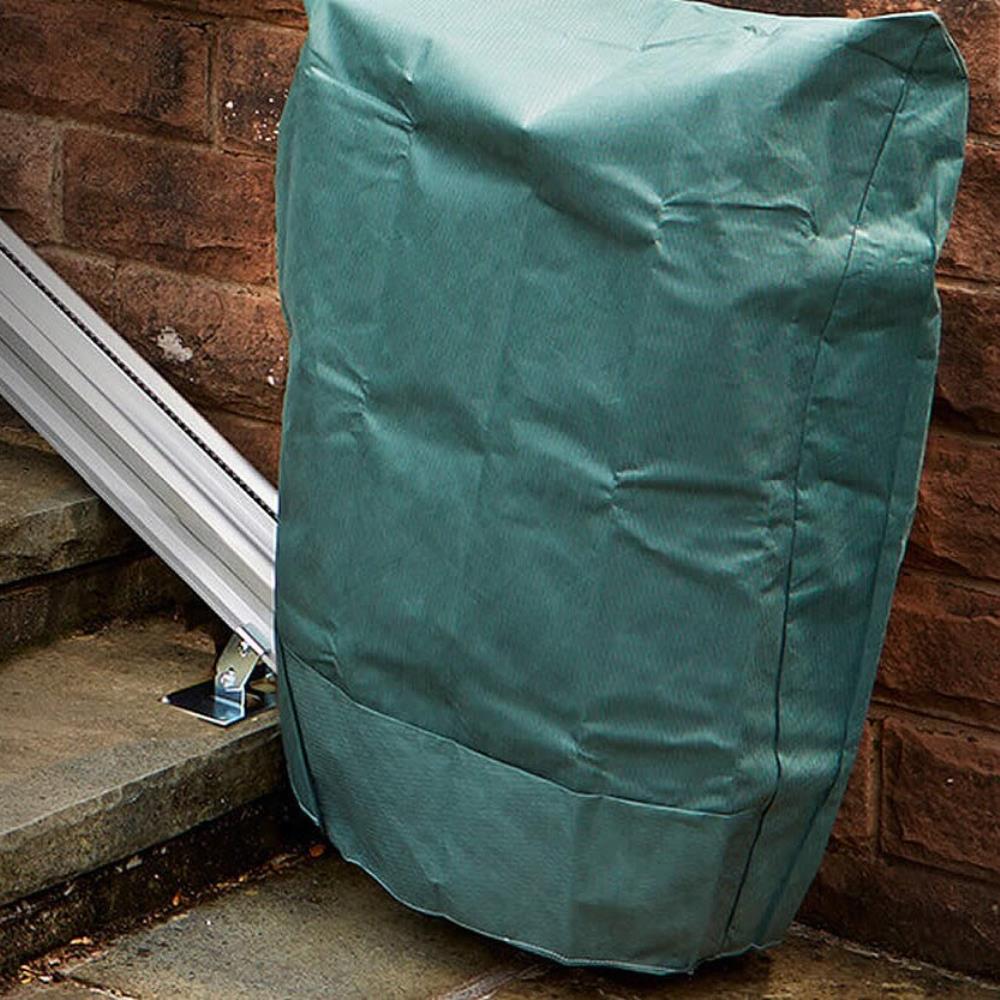

For extra protection, it comes with a weather resistant outdoor cover.

Stairlift Hinged Rail Option!

All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs.

Acorn Stairlifts have all the features you need, and none you don't!

Outdoor Stairlift Features

  • Fits quickly and easily to the stairs, not the wall.
  • Stairlift installation requires no major structural changes.
  • Our stairlift stops automatically if it meets an obstruction.
  • Slimline and folds away conveniently when not in use.
  • Optional hinged rail designed to eliminate any obstruction or trip hazard.

Outdoor Stairlift Installation

All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.

FREE Outdoor Stairlift Quote

Our comprehensive home survey is completely free and you're under no obligation to buy!

Specifications

  • Angles
    Standard seat post: 27-55°
  • Maximum Rail Length
    10 metres, 394 inches
  • Floor to Top of Footrest
    95 mm, 3.75 inches
  • Top of Footrest to Top of Seat
    445 mm (Short: 410 mm) (Tall: 505 mm), 17.5 inches (Short: 16.25 inches) (Tall: 19.75 inches)
  • Top of Seat to Top of Arms
    250 mm, 9.75 inches
  • Top of Arms to Top of Seat Back
    190 mm, 17.5 inches
  • Width Between Armrests
    445 mm (Wide arm version: 495 mm), 17.5 inches (Wide arm version: 19.5 inches)
  • Total Width
    605 mm, 23.75 inches
  • Total Height to Floor
    980 mm, 38.5 inches
  • Length of Arms From Seat Back
    470 mm, 18.5 inches
  • Length of Seat Base From Seat Back
    435 mm, 17 inches
  • Length of Footrest
    325 mm, 12.75 inches
  • Width of Footrest
    310 mm, 12.25 inches
  • Front of Footrest to Stringer
    570 mm, 22.5 inches
  • Back of Seat to Stringer
    13 mm, 0.5 inches
  • Folded Width
    310 mm, 12.25 inches
  • Minimum Width Required to Swivel at Top
    670 mm, 26.25 inches
  • Distance From Front of Rail to Stringer
    215 mm, (Wide arm version: 240 mm), 8.5 inches (Wide arm version: 9.5 inches)
  • Max Speed
    No greater than 0.15 metres per second
  • Method of Drive
    Rack and Pinion
  • Carriage Power
    24v DC batteries
  • Motor Power
    0.25KW
  • Max Load Capacity (Maximum User Weight)
    127kg, HD version: 159kg
  • Power Supply Input Range
    50-60Hz, 120-240V AC

Request a Demonstration Today

To request a demonstration of the Acorn Outdoor Stairlifts at home or in one of our showrooms, please enter your details and we'll contact you to arrange a suitable time.
