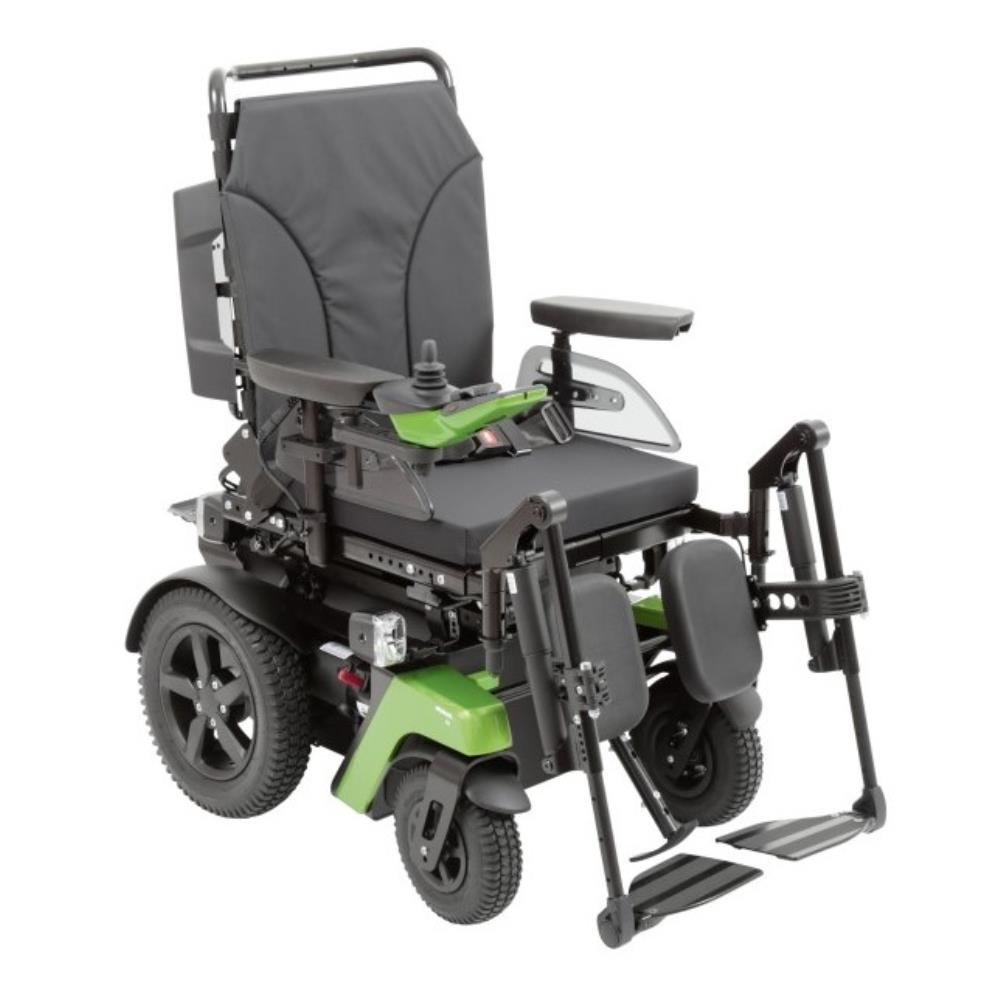

Ottobock Juvo B4 Power Wheelchair

Compact and robust entry-level model

The Ottobock Juvo B4 Powerchair is a compact and robust entry-level model, with versitile features for a comfortable user experience.

Designed to create an affordable customised experience to meet the demands of each individual user.

Request a:

  • Ottobock

The Juvo B4 with rear-wheel drive offers enhanced safety and comfortable damping characteristics for outdoor use.

It is also compact and manoeuvrable indoors.

Permanent drive wheel suspension compensates for uneven surfaces and the wheelchair's small outside dimension makes it easier to drive through narrow doorways and navigate in confined spaces.

Like all models in the Juvo product line, the B4 features a modular design and offers a high level of flexibility.

The available options and features for the mobility base, seating unit and control device result in a modern and customised fitting.

High-quality components such as the variably adjustable seat (VAS) or the TEN° control device can also be selected.

Mobility base

The rear-wheel drive mobility base of the B4 is robust, durable and requires little maintenance.

Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm.

Smaller wheel sizes are available for indoor use.

Drive wheel suspension

Permanent drive wheel suspension compensates for uneven surfaces and ensures enhanced safety and comfortable damping.

This can be further optimised with an additional front suspension.

Anti-tipper rollers

Integrated anti-tipper rollers ensure enhanced safety and protect against damage when driving backward.

Control Devices

VR2

The tried-and-tested VR2 is our basic control device, which can be programmed to suit your personal needs.

The control panel is divided into a keypad, two LED displays and a joystick. A charging receptacle is located on the underside.

TEN°

The TEN° handheld control device constitutes a small ergonomic revolution for you as a user: for example, a soft hand support prevents premature fatigue.

The innovative rotary control with a 10° rotation angle makes it easy to access the speed regulation.

The high-resolution 3.5" colour display gives you a good overview of the user interface.

Attendant control

The VR2 and TEN° can also be combined with an attendant control device.

It can be positioned on the back of the wheelchair or on the left or right side.

Another person can then provide assistance during driving.

It also permits easy operation of the power seat adjustments.

Seating Solutions

Standard seat

The seat width can be adjusted via the arm supports, the side panels provide stable support, and the height and depth of the soft arm support pads can be adjusted.

The manually adjustable 30° back support can also be power operated as an option.

The back support frame can be folded forward onto the seat bottom for storage or transportation.

Leg supports in various versions can be selected for all seating systems.

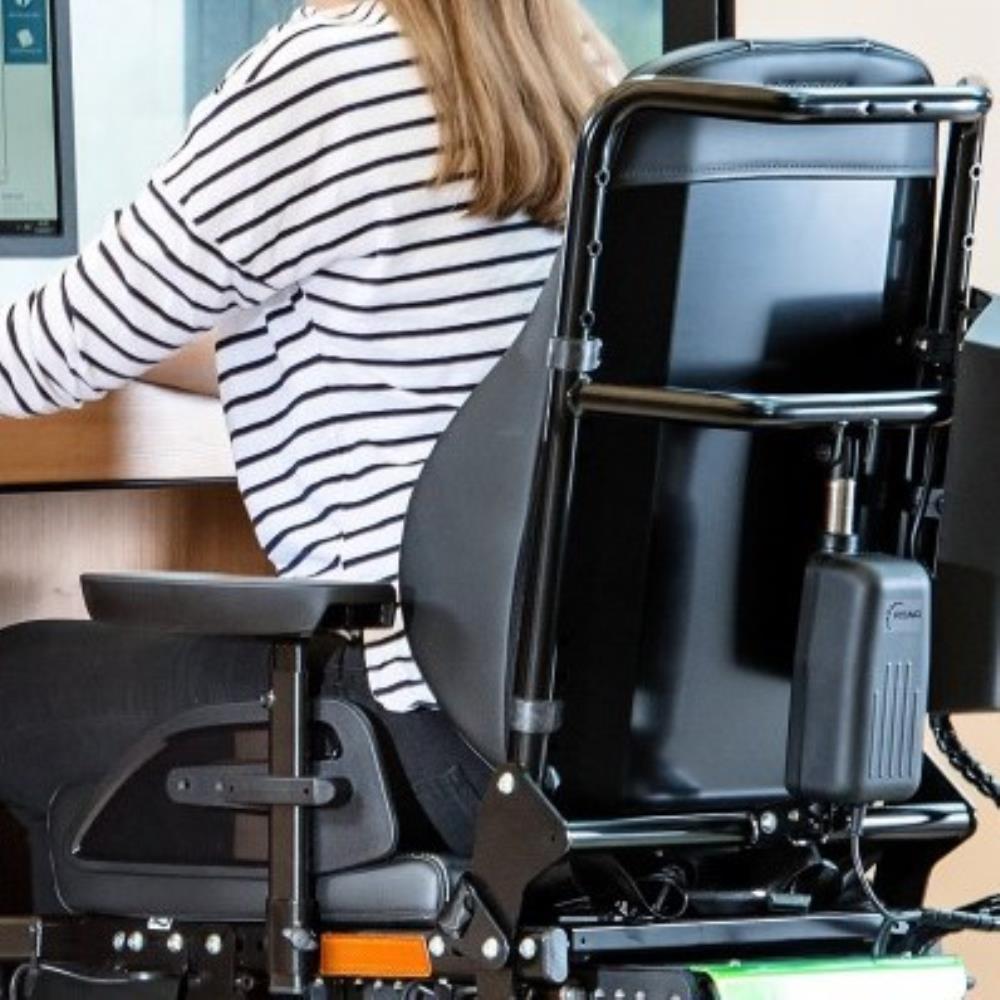

Variably adjustable seat (VAS)

The new VAS (variably adjustable seat) can be adjusted down to the centimetre.

It comes with an adjustable padded back support and a flat seat cushion as standard equipment.

The Ergo Joint back support angle adjustment is almost entirely free from uncomfortable shear forces.

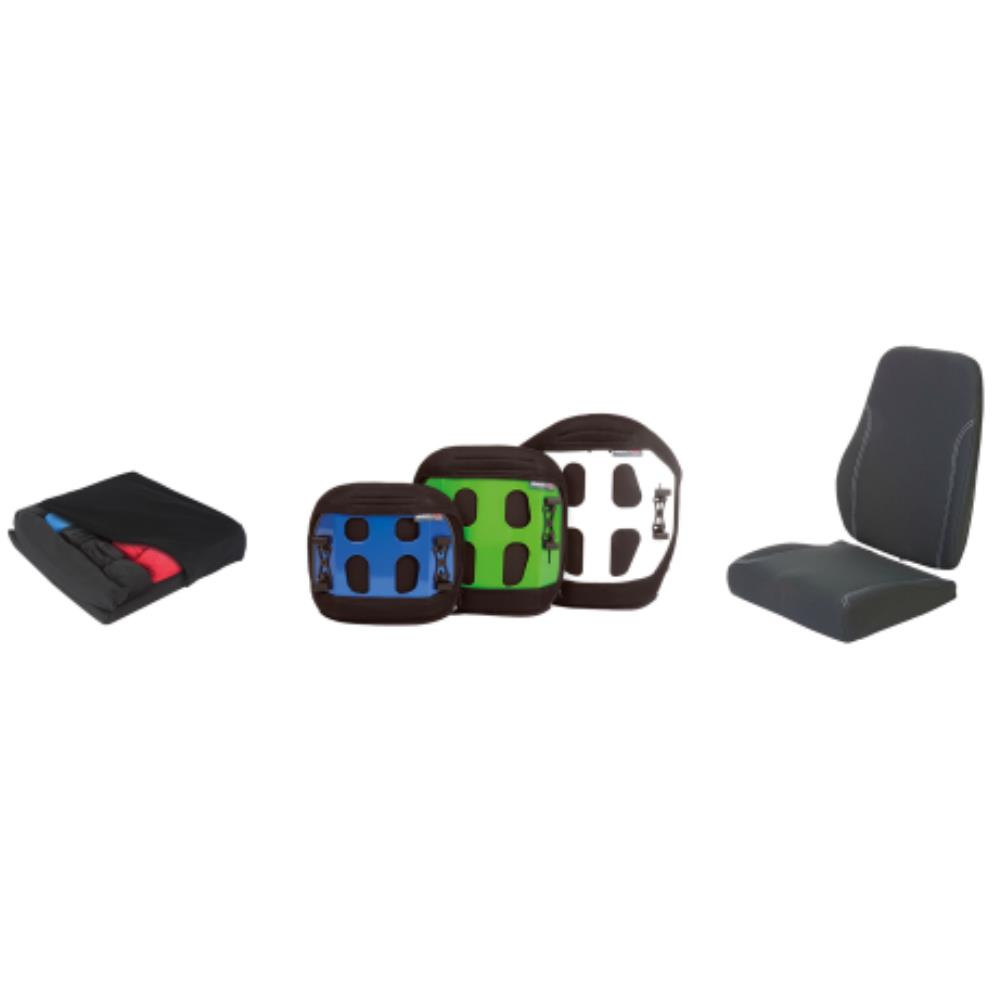

Contour package

Our collaboration with physiotherapists and occupational therapists has resulted in an optimally shaped seat which is available for ordering in a wide range of sizes and contours.

The front seat base is formed by the anatomically shaped seat surface, which offers a high level of lateral stability.

Moulded to the shape of the thigh, the cushion helps relieve the hip joint.

An integrated "ramp" also aids the optimal positioning of the pelvis.

Together with the back support pad, it helps to actively straighten the pelvis.

Both components of the contour package can be combined with the standard and VAS seating solutions.

Extras

Curb climbing assist

This option also makes it possible to cross higher obstacles such as curbs.

The curb climbing assist is mounted at the front in the centre, and is ready to use at any time while driving.

When getting in and out, the lever can be engaged at the rear to provide more space for the transfer.

Magnetic LED lighting

In case of impacts, for example on door frames or furniture, the special magnetic holder protects the clear glass housing against damage or loss as the LED lighting simply hangs by the cable, making it easy to reinstall.

This unique solution also allows the LED lamp to be used like a flashlight.

Another plus for enhanced safety: when the Juvo B4 is switched on, the footpath lighting automatically illuminates dark environments.

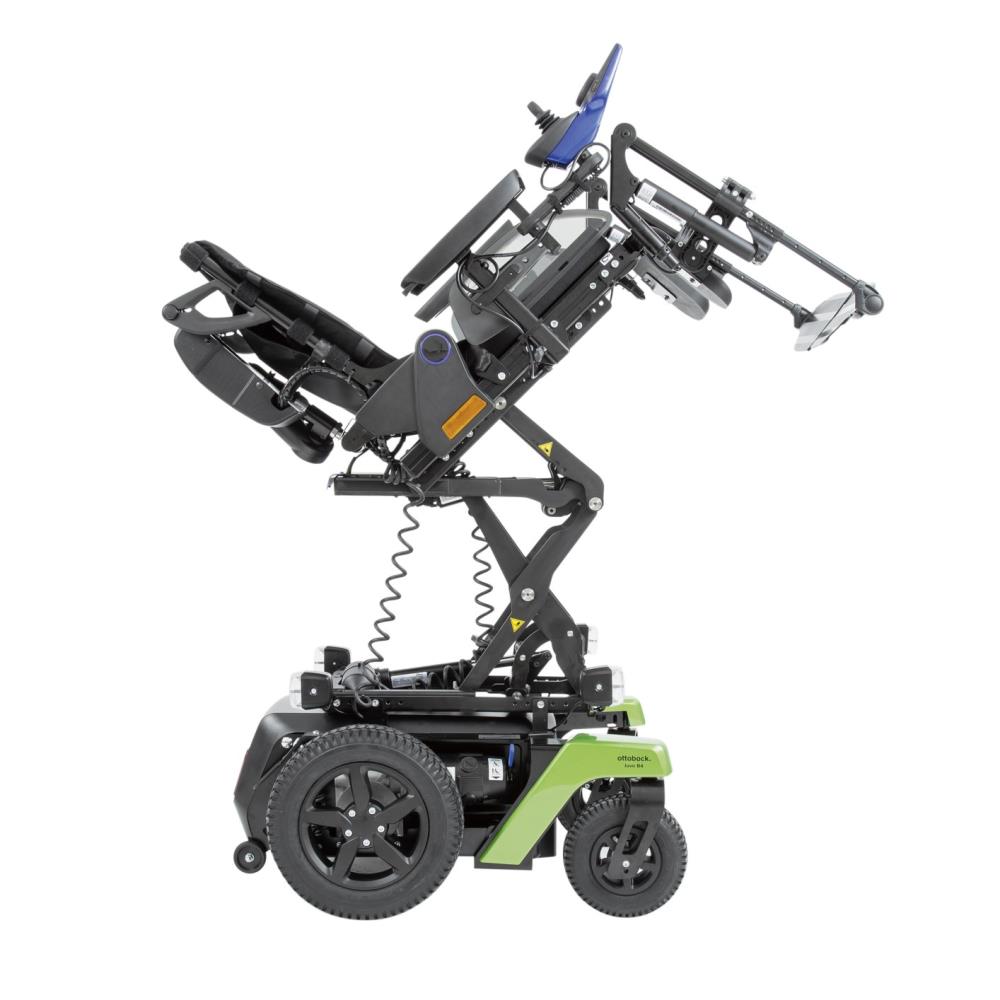

Power seat functions

These elementary functions play a key role in your everyday independence.

A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time.

Back support angle adjustment can play an important role in breathing and care.

A 35 cm seat height lift provides appropriate support to compensate for height differences during transfers or in other everyday situations, and for communication at eye level.

Colours:

  • White RAL 9016
  • Jet black RAL 9005 matte
  • Sparkle light orange
  • Candy red
  • Sparkle granny-smith
  • Marine blue

Specifications

  • Max Speed
    6 / 7.2 / 10 km/h
  • Battery Capacity
    AGM 53 Ah (C5), 62 Ah (C20), Gel 63 Ah (C5), 74 Ah (C20)
  • Battery / Distance Range
    35 km with AGM battery 53 Ah (C5), 62 Ah (C20), 45 km with gel battery 63 Ah (C5), 74 Ah (C20)
  • Max Charging Time
    12 h
  • Control Unit
    VR2 or TEN°
  • Max Load Capacity (Maximum User Weight)
    160 kg
  • Total Weight (Incl. Batteries)
    93.5 kg
  • Max Obstacle Height (That can be cleared)
    50, 85 or 90 mm optional
  • Total Width
    585 - 595 mm
  • Turning Radius
    800 mm
  • Max Incline
    7° (12%)
  • Seat Height
    (depending on seating solution) 410 - 570 mm
  • Seat Width
    340 - 560 mm
  • Seat Depth
    340 - 580 mm
  • Seat Inclination
    .-3° / 0° / 3° / 6° / 9°
  • Seat Tilt
    20° / 45° power
  • Armrest Height
    200 - 400 mm
  • Backrest Height
    370 - 550 mm
  • Backrest Angle / Recline
    .-9° to +30° mechanical, 0° to +30° power
  • Lower Leg Length
    150 - 540 mm
