Invacare Action 5

Effortless drive performance for exceptional manoeuvrability

The Invacare Action 5 has been designed for the more active individual looking for an affordable chair with great drive performance and the ability to fold easily for handling, storage and transportation purposes.

With i's two new advanced innovations (patent pending) and lightweight construction, the new Action 5 give individuals a chair they can enjoy and rely on.

Request a:

  • Invacare

The perfect fit for your lifestyle

Unique folding mechanism

  • The innovative design of the chair allows the frame to greatly reduce in size and the backrest to fold on top of the seat, making the chair compact.
  • No additional handling is required to fold the chair, making it effortless for storage and transportation.

All the Stability of a rigid chair

  • The 'H-Shaped' horizontal folding mechanism (patent pending) provides an improved level of stability compared to other folding chairs on the market.
  • The self-locking function ensures a secure seat position and makes the chair far easier to propel effectively improving drive performance.

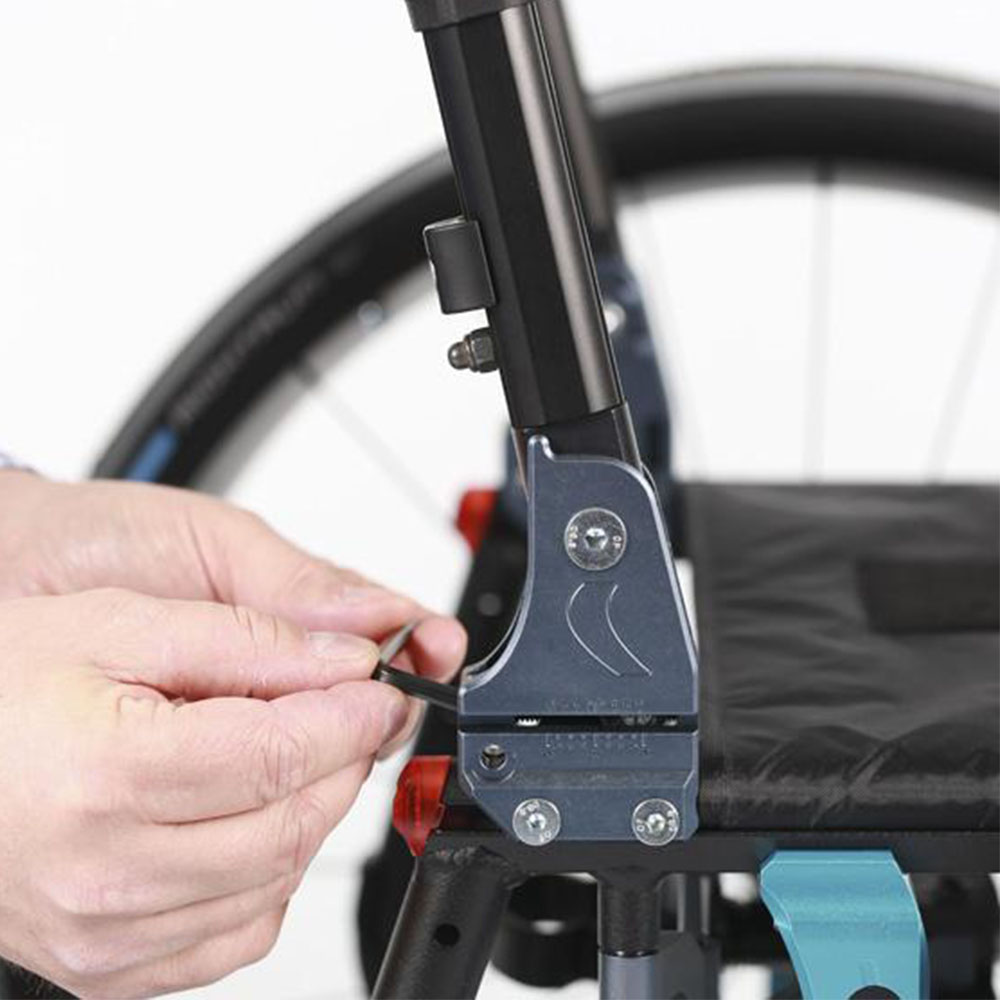

Adjust the chair whilst the individual remains seated

  • Our unique, clever design allows backrest angle adjustments to be made whilst the person remains in the chair (patent pending).
  • The step-less adjustability makes assessments and fittings both quick and easy to ensure the perfect fit for individuals.
  • The built in scale allows for a more accurate backrest angle to be set for postural comfort.

Make it personal

  • There are a variety of vibrant colours available to choose from, allowing individuals to design the chair around their personality.
  • The Action 5 can also be configured depending on individual needs, starting from selecting a more active look with the fixed frame, or the swing away version for even easier folding and transportation.
  • The Action 5 is cross compatible with other Invacare products including the Alber.

Specifications

  • Maximum User Weight
    100 & 130 kg
  • Base Weight
    Action 5: 8.3 kg, Action 5 Rigid: 6.8 kg
  • Total Weight
    Action 5: from 12.3 kg, Action 5 Rigid from 10.8 kg
  • Total Length (With Legrests)
    845 - 1205 mm
  • Total Length (Without Legrests)
    670 - 860 mm
  • Total Width
    SW + 180 mm to SW + 250 mm
  • Folded Width
    320 - 380 mm, Action 5 Rigid: 485 - 780 mm
  • Total Height
    701 - 1108 mm
  • Lower Leg Length
    Swing away frame 200 - 510 mm, Fixed frame 300 - 530 mm
  • Leg Support Angle
    Fixed front 80°, Swing away legrest 70° / 80° & 90°, Elevating legrest 0-80°
  • Seat Width
    305 / 330 / 355 / 380 / 405 / 430 / 455 / 480 / 505 / 530 mm
  • Seat Depth
    350 / 375 / 400 / 425 / 450 / 475 / 500 mm
  • Seat Height
    360 - 535 mm in steps of 25 mm, Rear seat height: 360 - 510 mm in steps of 25 mm
  • Seat Angle
    0 - 9°
  • Armrest Height
    150 - 265 mm, 205 - 280 mm, 250 - 375 mm
  • Backrest Height
    Fixed 300 / 325 / 350 / 400 / 425 / 450 / 475 / 500 mm - Adjustable 360 - 400 and 410 - 490 mm
  • Backrest Angle / Recline
    Fixed 90° -15° / + 15°
  • Folded Size
    670 - 860 mm
  • Max Incline

Request a Demonstration Today

To request a demonstration of the Invacare Action 5 at home or in our showroom, please enter your details and we'll contact you to arrange a suitable time.
